產品概述

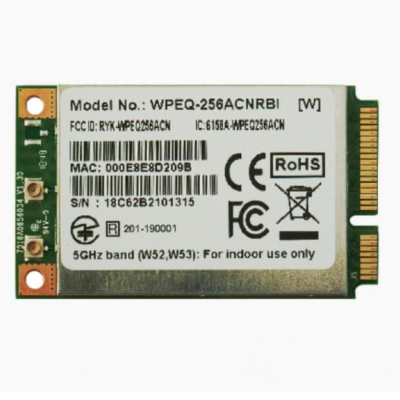

WPEQ-256ACNRBI 由 Qualcomm Atheros QCA9882 無線電芯片提供支持，并采用 2×2 WiFi 5 技術，可實現更高的吞吐量性能、可靠性和范圍。它旨在滿足關鍵嵌入式應用程序的苛刻性能要求。
WPEQ-256ACNRBI 將整體吞吐量大幅提升至 867Mbps。利用革命性的 WiFi 5 技術，WPEQ-256ACNRBI 在吞吐量和范圍方面樹立了新的標桿，使其成為消費者和企業應用的理想選擇，例如銷售點、游戲機和醫療設備。WPEQ-256ACNRBI 向后兼容 802.11ac/a/b/g/n 并完全支持符合行業標準的安全性。
適用應用
-
- • 工業電腦
- • 車載路由器
- • 車載前排
- • 機器人
- • 車載電腦
- • 戶外IPTV
- • 后終端無人機
- • 智能網關
參數特性
STANDARD
|
| WI-FI |
IEEE 802.11ac/a/b/g/n |
| Chipset |
·Qualcomm Atheros QCA9892-BR4B |
| Host Interface |
WLAN : PCIe |
RADIO
|
| Antenna |
2 x IPEX MHF1 connectors |
| Operating Frequency |
802.11ac/a/b/g/n ISM Band |
| 2.412GHz~2.484GHz
5.150GHz~5.850GHz
*Subject to local regulations
|
MODULATIONS
|
| 802.11b |
DSSS (DBPSK, DQPSK, CCK) |
| 802.11g |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11n |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11a |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11ac |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY
|
| WiFi |
Power – TX (± 2dBm) |
Sensitivity – RX |
| 11b @11Mbps |
20dBm |
≤ -87dBm |
| 11g @ 54Mbps |
16dBm |
≤ -74dBm |
| 11gn HT20 @ MCS 7 |
15dBm |
≤ -70dBm |
| 11gn HT40 @ MCS 7 |
15dBm |
≤ -68dBm |
| 11a @ 54Mbps |
14dBm |
≤ -74dBm |
| 11an HT20 @ MCS 7 |
13dBm |
≤ -71dBm |
| 11an HT40 @ MCS 7 |
13dBm |
≤ -68dBm |
| 11ac VHT80 @ MCS 9 |
10dBm |
≤ -59dBm |
POWER CONSUMPTION
|
| Continue TX |
1050mA |
| Continue RX |
480mA |
ENVIRONMENTAL
|
| Operating Voltage |
DC 3.3V |
| Temperature Range |
-40~ 85°C (Operating) |
-40 ~ 85°C (Storing) |
| Humidity(Non-Condensing) |
10~ 85% (Operating) |
5 ~ 90% (Storing) |
SIZE
|
| Dimension (MM) |
50.8mm(±0.3mm) x 29.85mm(±0.3mm) x 4.1mm(±0.3mm) |
| Weight |
7.7g |
SOFTWARE
|
| Driver |
Linux |
| Security |
64/128-bits WEP, WPA, WPA2,802.1x |
Miscellaneous
|
| Warranty Period |
12 Month |
| HS Code |
8517620050 |
認證
 |
 |
 |
 |
| USA |
EU Region |
Japan |
Canada |
環境合規
 |
 |
|
|
| ROHS |
REACH |
|
|
